Electrical fast transient pulse group generator

  • HCOMPACT 5 / HCOMPACT 7

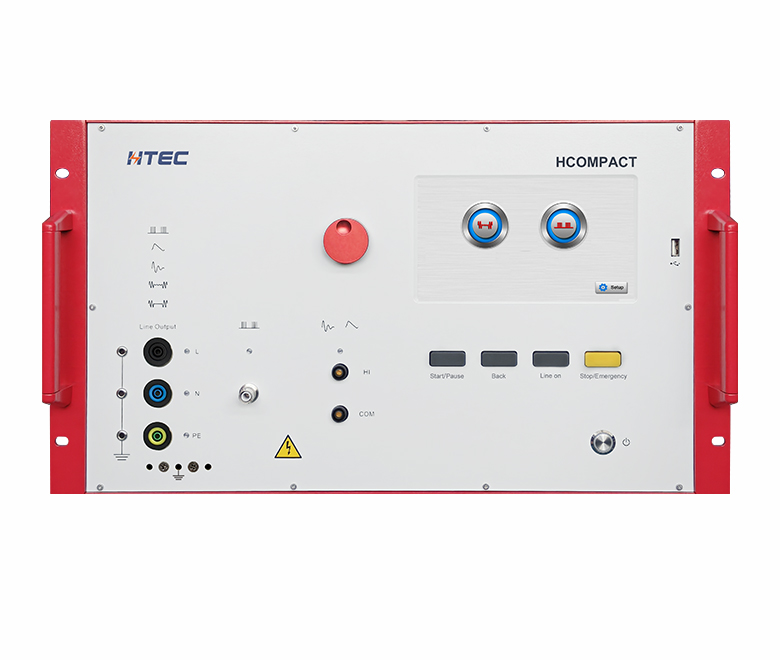

    HCOMPACT 5 / HCOMPACT 7
Details

5.0kV electrical fast transient pulse group generator, meeting IEC/EN 61000-4-4 and GB/T 17626.4

◆ ±5.0kV direct output

◆ Repetition frequency: 5kHz/100kHz; optional: 1Hz-1MHz

◆ Voltage waveform: 5ns/50ns

◆ Generator impedance: 50Ω

◆ Built-in single-phase coupling and decoupling network: 250V/16A(AC & DC), Max±4.5kV

◆ 7'' touch color screen

◆ Conform to standard: IEC/EN 61000-4-4, GB/T 17626.4

IEC/EN 61000-4-5, GB/T 17626.5 (1.2/50μs optional)

IEC/EN 61000-4-11, GB/T 17626.11 (optional)
