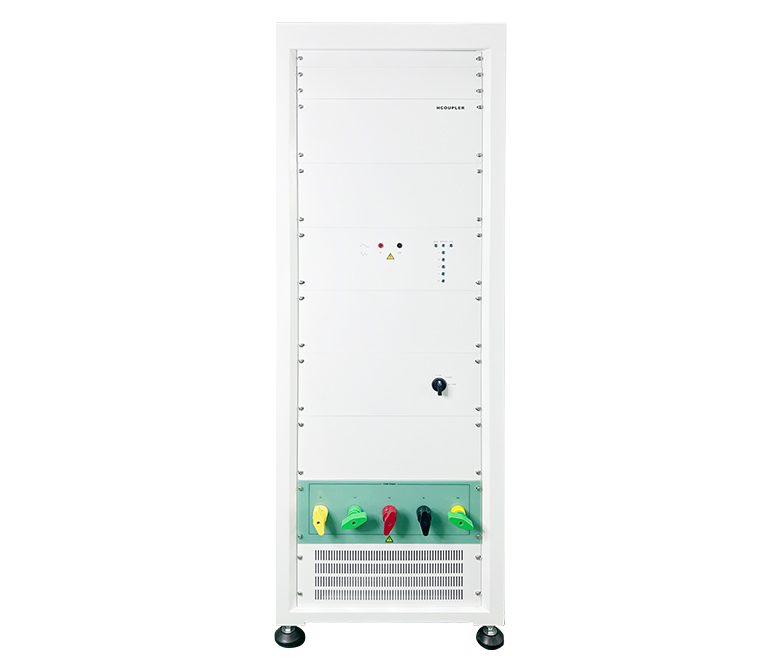

Communication line coupling network, meeting IEC/EN 61000-4-5 and GB/T 17626.5
◆ Coupling pulse peak value: maximum ±7.0kV
◆ Coupling waveform: 1.2/50μs and 10/700μs
◆ Coupling parameters:
8×80Ω, 8×160Ω, 8×320Ω (IEC 61000-4-5 Ed3.0 Figure 10)
8×25Ω (IEC 61000-4-5 Ed3.0 Appendix A Figure 4
◆ Rated input voltage: 250Vac, 300Vdc
◆ Maximum number of coupling lines: 8
◆ Input/output port: banana socket
